Planter Parts

  • Double-row ball bearing: fits gauge wheels on many planters (JD '92 and newer, Kinze '93 and newer, White 6000 and 8000), gauge wheels on JD 50/60/90-series drills, and closing arm on JD 60 and 90-series drills.
    $9.25
  • V-Closing Wheel Bracket (black) with Cast "T" handle, Eccentric bushings and Hardened hex step bushings. Fits Kinze planters '94 and newer and accepts bolt on style closing wheels. Spring not included; see Exapta's M.4433 & M.4466.
    $54.16
  • V-Closing Wheel Bracket with Cast "T" handle, Eccentric bushings and Hardened hex step bushings. Fits JD 7000 and 7100 and accepts bolt on style closing wheels. Includes hardware kit to bolt wheels onto bracket (standard 5/8 bolts). Closing spring not included; see Exapta's M.4433 & M.4466.
    $54.16
  • You’ll need these pins to secure the Bullseye seed tube(Part # PPM700150) to the row unit on most John Deere 7200/7300 and 1700 series (Model year 2006 and before) planters. Deere seed tubes have a different mounting system and didn’t use the more secure pin method. Each package secures 4 rows.
    $12.00
  • The BullsEye Seed Tube reduces seed ricochet and improves wear life.This model fits Deere 7000/7100 series, Kinze 2000/3000(except Edgevac) series,and Great Plains Yield pro planters with either a 1/2” or 3/4” sensor eye hole.
    $16.50
  • The BullsEye Seed Tube reduces seed ricochet and improves wear life. This model fits White 5100(Modification Required),6000, 8000 and 9000 series planters with either a 1/2” or 3/4” sensor eye hole.
    $16.50
  • The BullsEye Seed Tube reduces seed ricochet and improves wear life. This model fits Deere 7200/7300,and 1700 series planters with either a 1/2” or 3/4” sensor eye hole. Deere 7200/7300 and 1700 series (Model year 2006 and before) will also require part number PPM700137 (Pin & Clip kit) for installation. Deere 1700 series (Model year 2007 and later) require PPM700167 (Spring Pin Kit).
    $16.50
  • The BullsEye Seed Tube reduces seed ricochet and improves wear life. This model fits Monosem planters with either a 1/2” or 3/4” sensor eye hole.
    $16.50

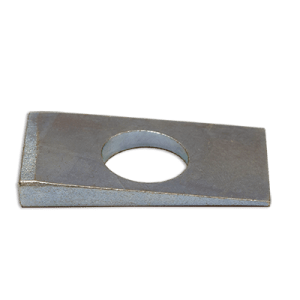

  • Wedge, up to 6-degrees of toe-out for closing wheels held on by a bolt (most late-model planters; early Kinze, JD 7000 & 7200 with updated closing brackets). Fits either 5/8" or 16mm bolts. Ideal for tough conditions such as high-clay, low-OM soils, or soddy seedbeds.
    $6.50
  • V-Closing Wheel Bracket with Cast “T” handle, Eccentric bushings and Hardened hex step bushings. Fits JD 7200, 7300, 1700 and accepts bolt on style closing wheels. Includes hardware kit to bolt wheels on bracket (standard 5/8 bolts). Closing spring not included; see Exapta’s M.4433 & M.4466..
    $54.16
  • You’ll need these spring clips to secure the Bullseye seed tube(Part # PPM700160) to the row unit on John Deere 1700 series planters(Model year 2007 and after). Deere seed tubes have a different mounting system and didn’t use the more secure pin method. So you will need to add these to your seed tube order if your planter row unit does NOT have pre-drilled holes for a pin and clip system. One package does 4 rows.
    $12.00
  • For external routing of liquid tube on Keeton Universal wrap-around & Univ. Scraper-Mount brackets.
    $4.50
