Quick Attach
-
Quick Attach bracket only: fits JD 7000 thru ME5 (except ExactEmerge's brush-belt); Kinze 2000s. Also fits Kinze 3000s with small/standard seed tubes (not the oversize ones -- you need the scraper-mount Quick Attach brkts for those). Kinze 4900s also need the QA scraper-mount.

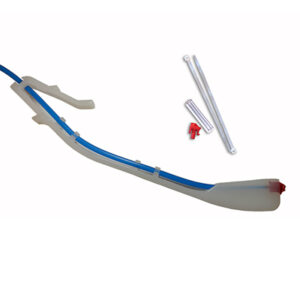

This Quick Attach kit fits JD 7000 thru ME5 (except BrushBelt ExactEmerge) & Kinze 2000s. Quick Attach brackets are much sturdier and easier to install than the Universals. Single liquid tube goes all the way through tail. This kit is comprised of KTN150109 bracket along with KTN140045 standard-height tail.
Use different Quick Attach brkts for White 9000s, Kinze 3000s & 4900s.
Quick Attach Bracket only for White 9000s (doesn't fit White 6000s & 8000s—use Universals instead for those planters)Quick Attach Keeton bracket for Kinze 4900s (all) & 3000s (with oversize seed tubes). (For non-EdgeVac Kinze 3000s prior to 2013, you can use the wrap-around Quick Attach brkt, which positions the tail about 1.5" farther forward for better performance.) Tail not included.Keeton Quick Attach bracket and standard tail with single liquid tube. Installs inside of row unit frame using disk scraper mounting holes. Fits Kinze 3000, 4000 series planters with SpeedTube, WaveVision, Bullseye, and "Small" or "Large" seed tubes. Will NOT work with spring loaded disk scrapers.
Keeton Quick Attach bracket and standard tail with single liquid tube for White 9000s (doesn't fit White 6000s & 8000s—use Universals instead for those planters).
The Universal Bracket fits Deere 7000s thru XP (& Max-Emerge 5 [without BrushBelt] if brkt legs cut & hole drilled in shank, or if converted to XP guards), Kinze 2000s, White 6000s – 9000s, & some Kinze 3000s (non-EdgeVac, prior to 2013). (Kinze EdgeVac & all 2013 & newer models [including 4900] need Scraper-Mount bracket instead.) (ME5 with BrushBelt needs Quick Attach Keeton.) Note: We recommend Quick Attach Keetons for all planter models that they fit — they’re much more robust and trouble-free as compared to the Universals. Universal Brackets now pre-cut by Exapta for full Mojo compatibility & fast install. No liquid capability (='Dry' tail).Content of this page is copyright 2005-2022 Exapta Solutions, Inc. (reprint with written permission only).
Thompson wheel covered by U.S. Patent No. 6,907,833. Liquid delivery feature of Valion seed tube guards is U.S. Patent No. 8,978,564. Ninja seed bounce flap U.S. Patent Pending. UniForce U.S. Patent Pending. All rights reserved on other designs. Exapta is a registered trademark of Exapta Solutions, Inc. Keeton is a registered trademark of Precision Planting. Mojo Wire, Thompson wheel, Valion guard, Ninja flap, UniForce, DuraLok, No-till Seeding Explained, and No-till Seeding School are trademarks of Exapta. Disclaimer: Recommendations & page content are current, accurate, and believed to be broadly applicable as of the time of writing (Dec 2005) and last update (2005 – 2014). Because of diversity of soils, climate, crops, planter & drill models/designs marketed worldwide, combinations of attachments, etc., actual results may vary. No warranty is made as to actual results obtained. Should you encounter exceptions or worthwhile annotations to the statements made on this page, please contact us.
