Gauge Wheel Axle Kits
-
$53.33
Left Aricks Depth CONTROL Arm. Cast in Hi Tensile steel. The Hi Tensile stud is up-sized for added strength where the stud leaves the casting.
$53.33Right Aricks Depth CONTROL Arm. Cast in Hi Tensile steel. The Hi Tensile stud is up-sized for added strength where the stud leaves the casting.$195.00For John Deere 90 and Pro-series openers. The gauge wheel axle kit from Aricks is the final piece in making your disc opener completely non-greasable! No more seized axles. Holds cast arms tight.$195.00For John Deere 90 and Pro-series openers. The gauge wheel axle kit from Aricks is the final piece in making your disc opener completely non-greasable! No more seized axles. Holds cast arms tight.$6.75Includes replacement outer hub seal sleeve and inner hub seal sleeve to fit JD air seeder pro and non-pro series row units. Replaces JD N219000 and W33806.$77.00Radial double taper roller bearing to fit JD 60/90/N series opener hub. Replaces JD bearing used in hubs: 60/90 series = AN281856 N series = AA97715 Timken or NTN brand only, not a cheap imitation!$10.80Includes replacement outer hub seal to fit pro and non-pro series, and replacement inner hub axle spacer seal to fit all non-pro series, and pro series prior to s/n 795300 (or spacer used with replacement greaseless axle kit installation on pro series). Replaces JD B13294 and AN281241. **Does not include direct replacement for JD A114711 OEM seals used on s/n 795301+ pro series axle tube nut**All About Gauge Wheel Axle Kits

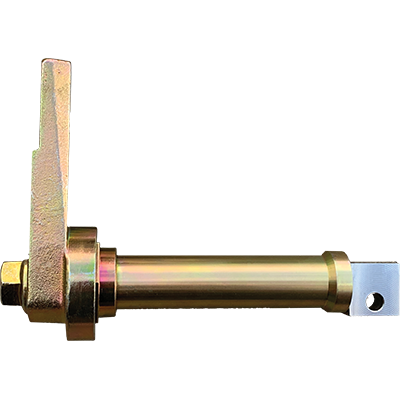

The gauge wheel axle kit from Aricks is the final piece in making your disc opener completely non-greasable! The gauge wheel depth adjustment, via the axle rotation, is a common point for seizing on the JD 60, 90 and Pro-series openers. In dry, dusty conditions, grease and dirt pack together, becoming rock-hard, inhibiting rotation of the axle and rendering the depth adjustment arm useless. These new axles won’t seize, allowing for smooth operation of the depth adjustment arm.
Farmers face enormous difficulties trying to unseize their axles in order to adjust seed depth. Most resort to removing the entire disc opener and placing it in a hydraulic press to force out the seized axles.
Another issue is once these cast arms get a little movement in the connection to the gauge wheel axle, it’s very difficult to keep them tight. Now those worn cast arms, combined with a new Aricks axle, will never become loose again. Sold as a kit to give you maximum flexibility in replacing several components at once.
Greaseless, Won’t Seize
The gauge wheel depth adjustment, via the axle rotation, is a common point for seizing on the JD 60, 90 and Pro-series openers. In dry, dusty conditions, grease and dirt pack together, becoming rock-hard, inhibiting rotation of the axle and rendering the depth adjustment arm useless. These new axles won’t seize, allowing for smooth operation of the depth adjustment arm.

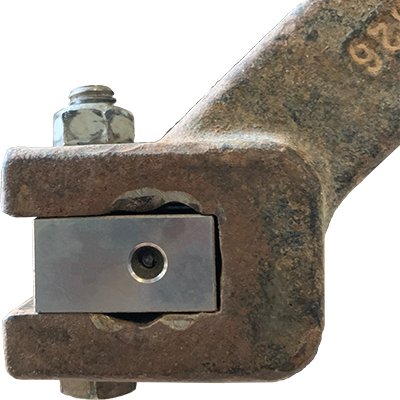

Reuse Worn Cast Arms
The solid axle shaft attachment point has been beefed up for greater surface contact, allowing you to reuse the worn depth adjustment arms, for even more savings.
Quality Bushings & Seals
High-quality bushing material in the axle spindle and an extremely effective and durable seal to keep the axle shaft dust free and running smoothly for many acres to come.
