Aricks Row Cleaners
-

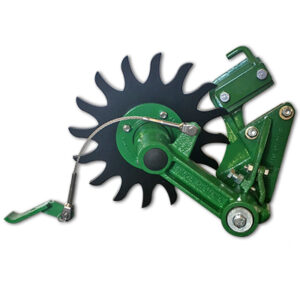

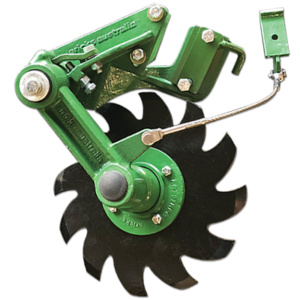

$595.00For JD 60/90-series no-till drills. (Right-hand unit.) Installation requires either welding on a tab (that holds the lift cable) to the frame above each row, or drilling and tapping a hole to fasten it (we have high-quality taps for sale, and will soon have a video showing how to do this.) Box drills require extra support tubes (for the lifting cable) to be installed ahead of rockshafts. 50-series requires different version (see). Not suitable for corn stalks–must be locked up. Note: Exapta doesn't stock but a few of these for demos; it takes 12 – 24 wks to get orders from Australia and shipped back out to North American customers.$595.00For John Deere 50-series no-till drills. (Left-hand unit.) Installation requires either welding on a tab (that holds the lift cable) to the frame above each row, or drilling and tapping a hole to fasten it (we have high-quality taps for sale, and will soon have a video showing how to do this.) Box drills require extra support tubes (for the lifting cable) to be installed ahead of rockshafts. Not suitable for corn stalks–must be locked up. Note: Exapta doesn't stock but a few of these for demos; it takes 12 – 24 wks to get orders from Australia and shipped back out to North American customers.$54.00Sharktooth blade from Yetter, to fit Aricks row cleaner 4-bolt hub
All About Aricks Row Cleaners
We’re pleased to offer another top-notch product from Aricks of Australia, where ruggedness is taken to an extreme (check out our Aricks bushing kits for these drills – wonderful product). These row cleaners have a proven, 10-year track record in Australia, and we’re proud to be the exclusive distributor in North America.
While sharper opener blades and waiting for the mulch to dry each morning can take you a long way in preventing hairpinning (as can our UniForce hydraulic downforce system), a row cleaner helps you out if the mulch is simply too thick to cut, or waiting for it to dry isn’t practical. Also, in very cold climates, a bit of soil warming from clearing some mulch out of the row can be beneficial.
Aricks row cleaners are also a big advantage when seeding very shallow, such as alfalfa or canola, where it’s difficult to make the opener blades cut the residue (18-inch blades cut best when seeding 2.5 – 3″ deep). Not suitable for use in corn stalks — they must be locked up. They do handle hemp, field pea, soybean, faba bean and flax residue without much issue, as well as stripper-harvested cereals.

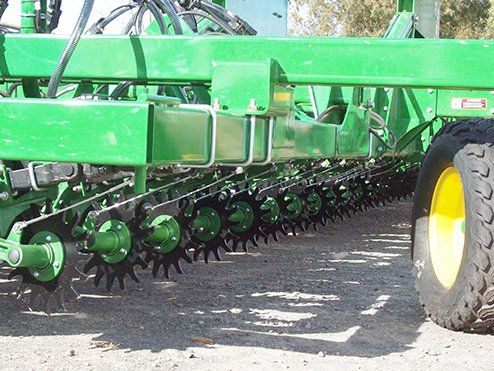

A jacker bolt allows control of the max down-stroke. When not needed, the cleaner is easily pinned up.
Exapta has a small quantity in stock, but otherwise it takes 12-16 wks to get these from Australia and shipped back out to North American customers.
Note: Box drills require installation of a bar ahead of each rockshaft (call us for price and shipping cost; or prints available to build your own)
Made to Last from These Quality Materials

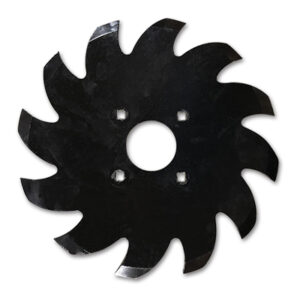

10mm Bisalloy Steel Plate toothed wheel Cast steel body and arm 32mm high-tensile chrome pivot pin 5mm stainless steel lifting cable
Low Maintenance
Heavy-duty hub: fully sealed, maintenance-free bearing No greasing of pivot pin

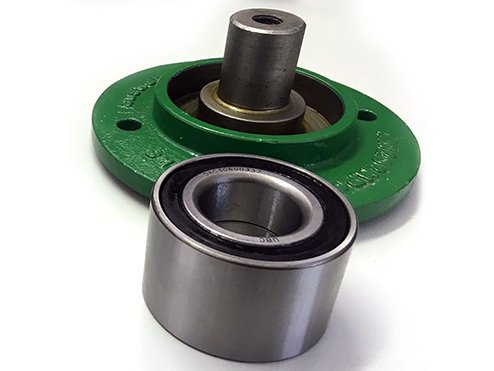

Robust Hubs & Bearings
Aricks row cleaners feature extremely robust hubs and bearings. This is the same bearing that’s in the opener blade hub of the 60/90-series. These can take a beating and remain trouble-free for many years and tens of thousands of acres.

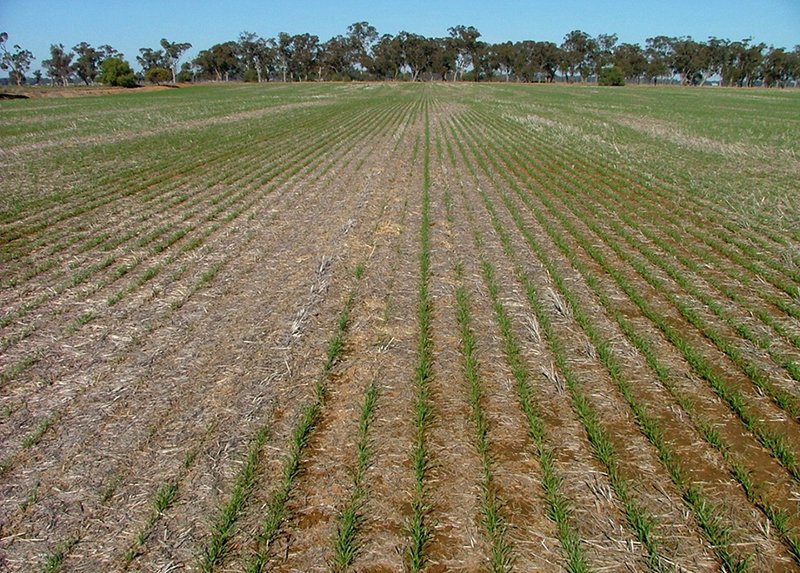

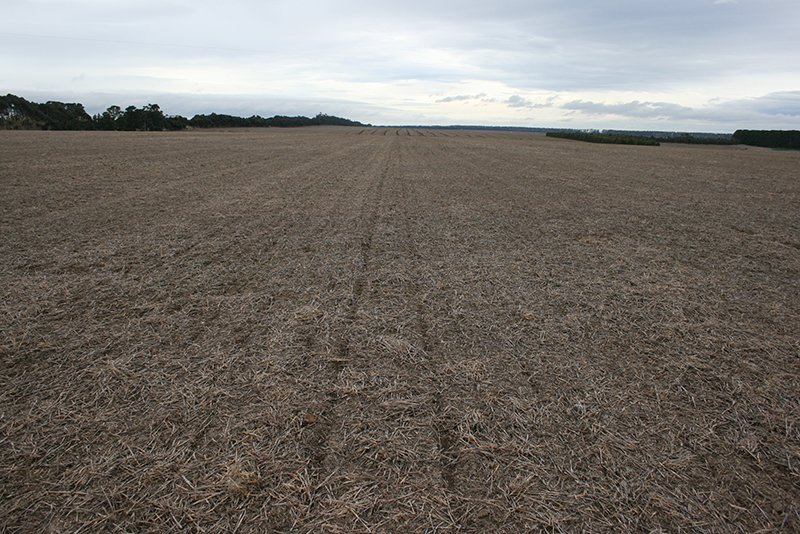

One Aricks wheel was used: see center row for obvious improved germination.

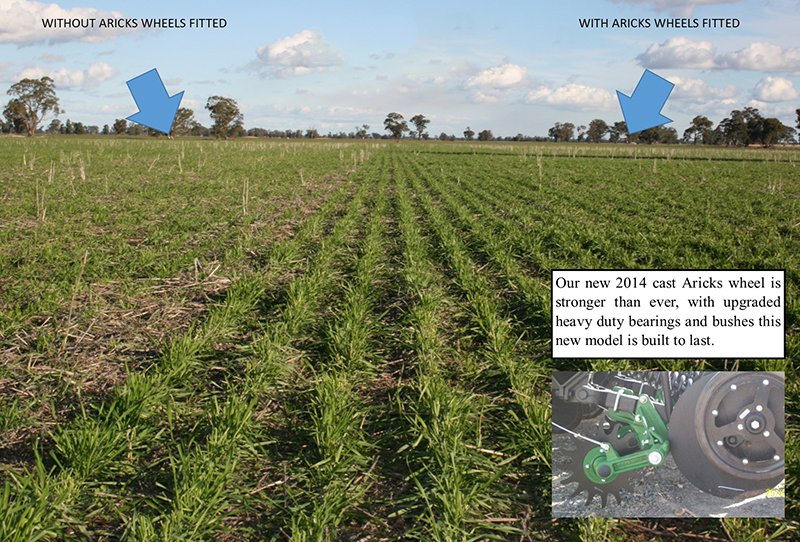

Left side is without Aricks row cleaners. Right side with with Aricks row cleaner wheels.
Same field, adjacent passes: With a full set of Aricks wheels in use in RH pic, and without aricks wheels in LH (above). You can see the same landmarks in both photos.

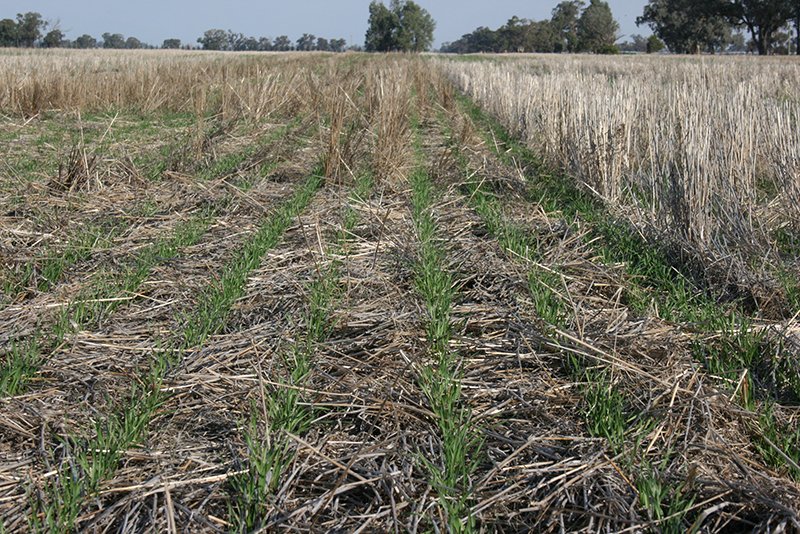

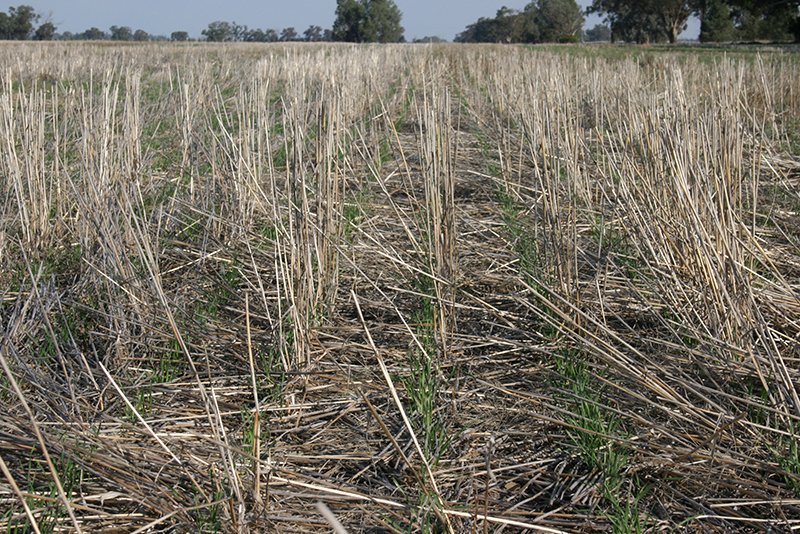

Two rows in center of photo were cleared with the Aricks row cleaner.

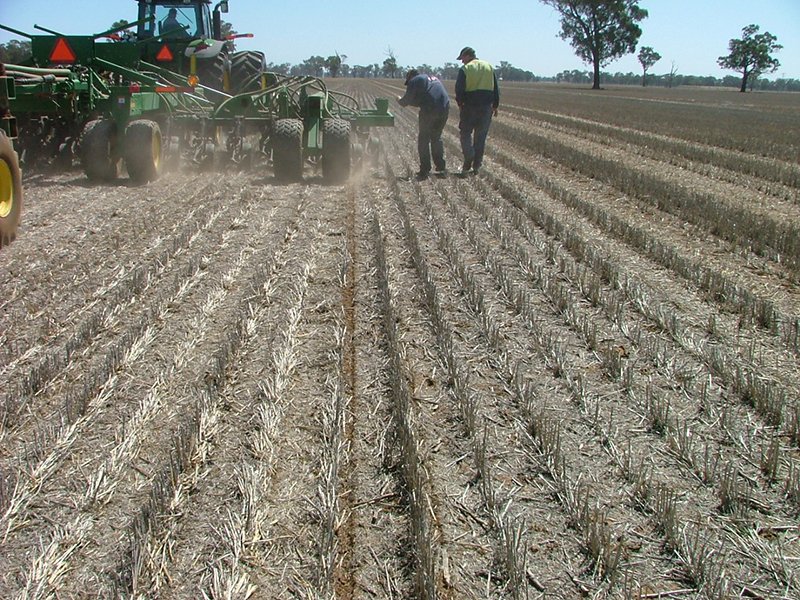

One Aricks residue manager in use (outside row of rear rank).

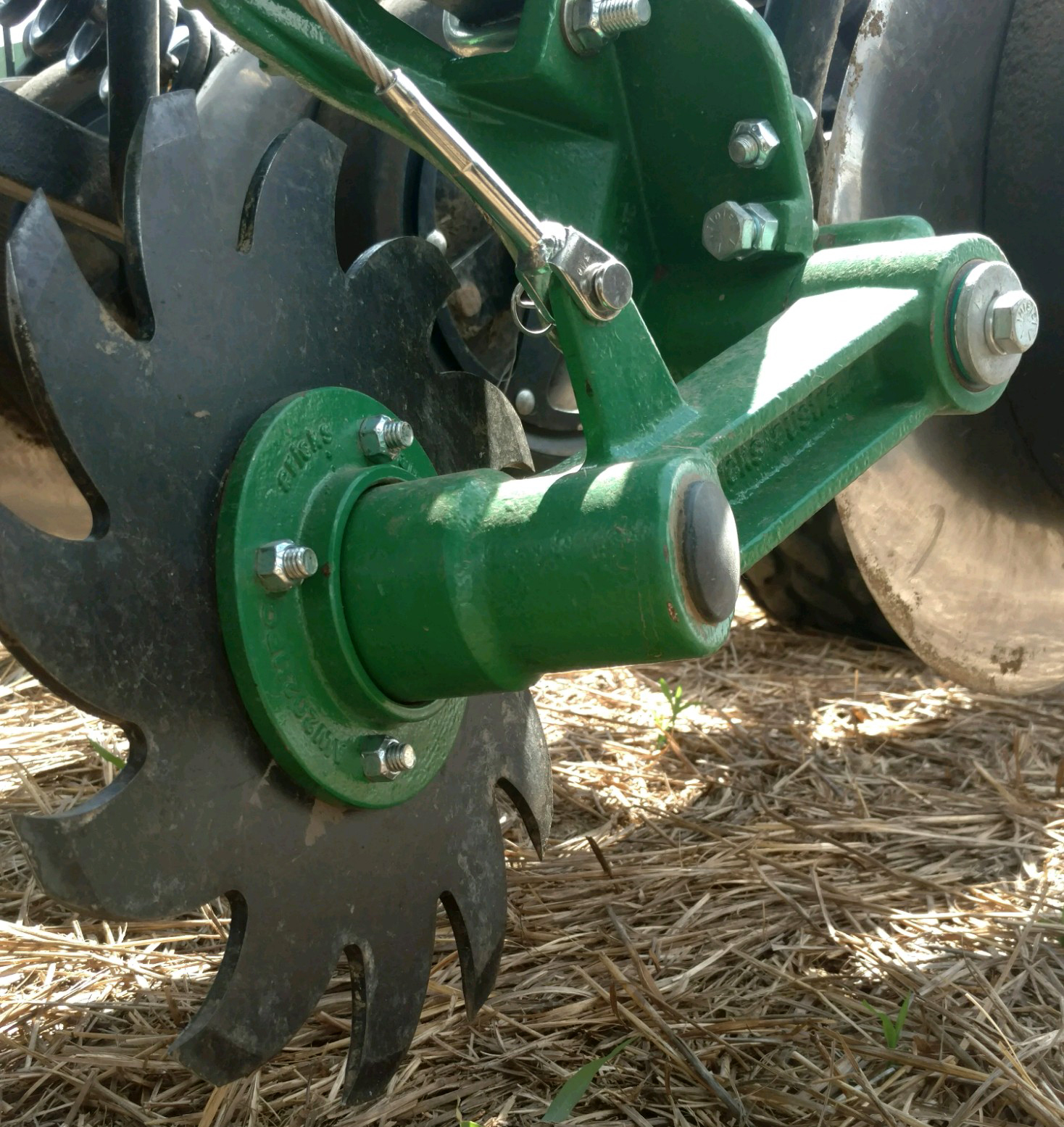

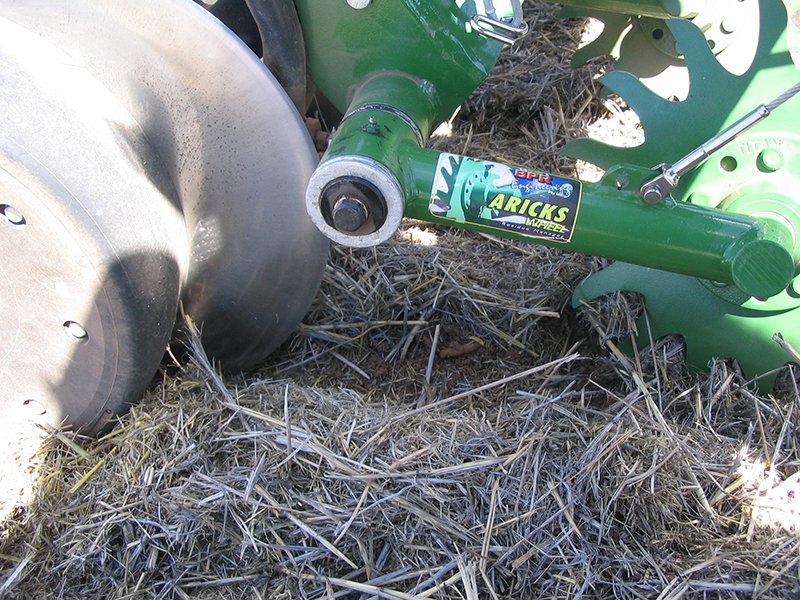

Perfect clearing through an incredible layer of thatch, but no soil is disturbed. Note: This was an early version — the mounting & arm are now heavy-duty castings and the bearing has been upsized — extremely robust. These have been on the market for 10 years in Australia!
“Aricks wheels really do eliminate hairpinning and improve the seed-to-soil contact greatly. And I can sow longer at night when conditions become damp.”
Peter Hanrahan
Corowa, NSW, Australia, (Aricks row cleaners on 40-ft 1890 on 10" spacing)
“I bought my 40-ft JD 1890 in 2010, and in 2016 I bought Aricks residue managers. The results I had sowing into dry heavy stubble were amazing — I could see the difference the residue managers made immediately — it was a great result. They should come standard on all JD disc machines — it’s a no brainer. I wish I had put them on 7 years ago.”
Mark Dugan (Maroondah farm)
Trangie, NSW, Australia, (10” row spacing)
Aricks Row Cleaners Videos
Dry sowing (dusting in), southern NSW Riverina
Aricks row cleaners in sorghum stubble in Australia.
John Deere 1890 using Aricks row cleaners
Content of this page is copyright 2005-2022 Exapta Solutions, Inc. (reprint with written permission only).
Thompson wheel covered by U.S. Patent No. 6,907,833. Liquid delivery feature of Valion seed tube guards is U.S. Patent No. 8,978,564. Ninja seed bounce flap U.S. Patent Pending. UniForce U.S. Patent Pending. All rights reserved on other designs. Exapta is a registered trademark of Exapta Solutions, Inc. Keeton is a registered trademark of Precision Planting. Mojo Wire, Thompson wheel, Valion guard, Ninja flap, UniForce, DuraLok, No-till Seeding Explained, and No-till Seeding School are trademarks of Exapta. Disclaimer: Recommendations & page content are current, accurate, and believed to be broadly applicable as of the time of writing (Dec 2005) and last update (2005 – 2014). Because of diversity of soils, climate, crops, planter & drill models/designs marketed worldwide, combinations of attachments, etc., actual results may vary. No warranty is made as to actual results obtained. Should you encounter exceptions or worthwhile annotations to the statements made on this page, please contact us.
“We’ve had them 4 years, and had only one bearing go out — on the outside end of the drill. Other than that, they’ve been trouble-free. No plugging in irrigated stubble. Sometimes a little wrapping in hemp stubble, so we watch them close, but have never stopped a wheel…. They move about 70 – 95% of the residue that we’d like them to move. A lot better than nothing.”
Will Van Roessel
Bow Island, AB, Canada, Exapta customer since 2010 (Aricks row cleaners & Thompson whls on both ranks of a 30-ft JD 1850 on 7.5” spacing)
“I’ve had them on my 1895 for 7 or 8 years, covering 40,000 – 50,000 acres. They work. I couldn’t imagine not having them. They extend the number of days we can work — we can get on soft fields sooner [when cutting would be a problem]. The sort of days we can pick up are after a light shower that dampens the straw but not the soil. We can also start earlier each morning and go later in the evening…. I’m impressed the condition they are in after so many acre…. No problems in soybean, canola, field pea, faba bean, or flax stubble. No problems in cereals harvested with a stripper head. But in corn stalks, we had to lock them up.”
Robert Stevenson
Kenton, Manitoba, Exapta customer since '07 , (Aricks row cleaners & Thompson wheels on both seed ranks of 43-ft JD 1895)
